BMW 315 - 323i ( E21 )

Air filter from Mann-Filter for BMW E21 315, 316, 318 and 320/4 Air filter  original Mann-Filter suitable for BMW E21 315, 316, 318 and 320/4 is needed 1x per vehicle suitable for the following OE numbers: 1263958 13711265624 13721257764 13721258270 13721263958 13721265624 13721329294 suitable for the following engine codes: M10 B16 (164VA) M10 B16 (164VB) M10 B18 (184VA) M10 B18 (184VC) M20 B20 Height: 51 mm outer diameter: 315 mm inner diameter: 242 mm Filter design: filter element

Air filter from Bosch for BMW E21 318i Air filter  original Bosch suitable for BMW E21 318i is needed 1x per vehicle suitable for the following OE numbers: 13711287681 13712960105 13721261012 13721271254 13721278138 13721278139 13721287681 13722960105 suitable for the following engine codes: M10 B18 (184VA) Height: 39 mm Length: 326 mm Wide: 183 mm Filter design: filter element

Air filter from Mann-Filter for BMW E21 320/6 Air filter  original Mann-Filter suitable for BMW E21 320/6 is needed 1x per vehicle suitable for the following OE numbers: 13721263097 13721265005 suitable for the following engine codes: M20 B20 (206VA) Height: 28 mm outer diameter: 403 mm inner diameter: 217 mm Filter design: filter element

Air filter from Knecht for BMW E21 320i and 323i Air filter  original Knecht suitable for BMW E21 320i and 323i is needed 1x per vehicle suitable for the following OE numbers: 1262600 13721262600 suitable for the following engine codes: M10 B20 M20 B23 (236EA) Height: 32 mm Length: 346 mm Wide: 211 mm Filter design: filter element

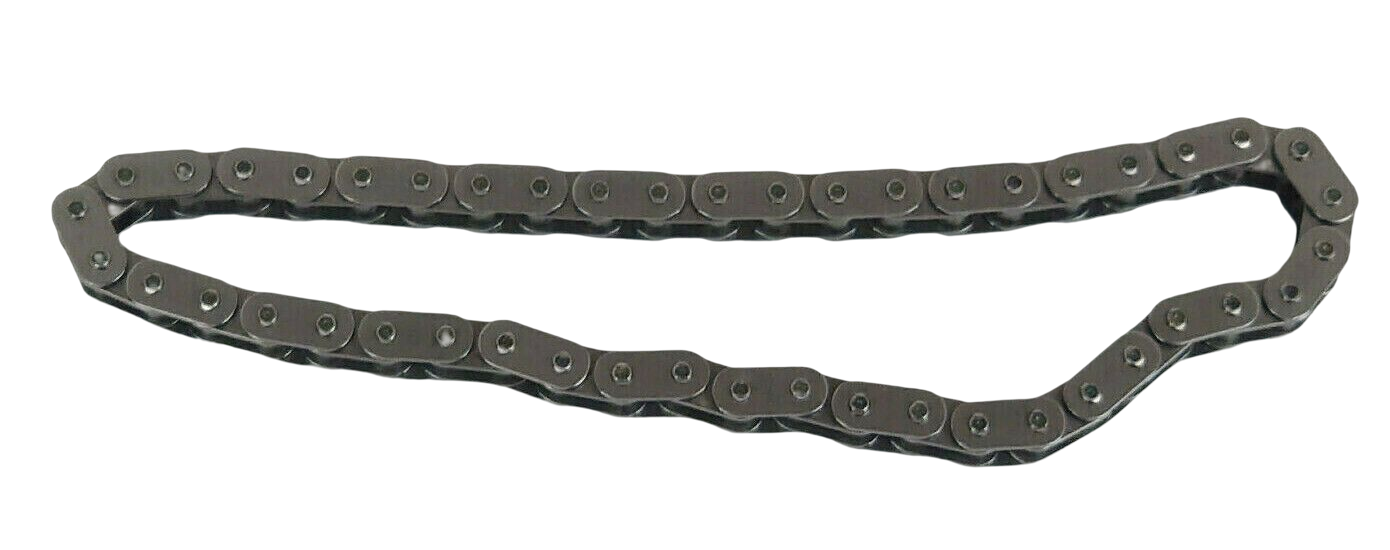

Chain for oil pump drive for BMW E21 315 - 320i Chain for oil pump driveChain design: simplexnumber of chain links: 46timing chain dimension: G67WZfor BMW E21 315 - 320iONLY for models with M10 engine!!!is needed 1x per vehicleFor the assembly special tools are necessary!!!

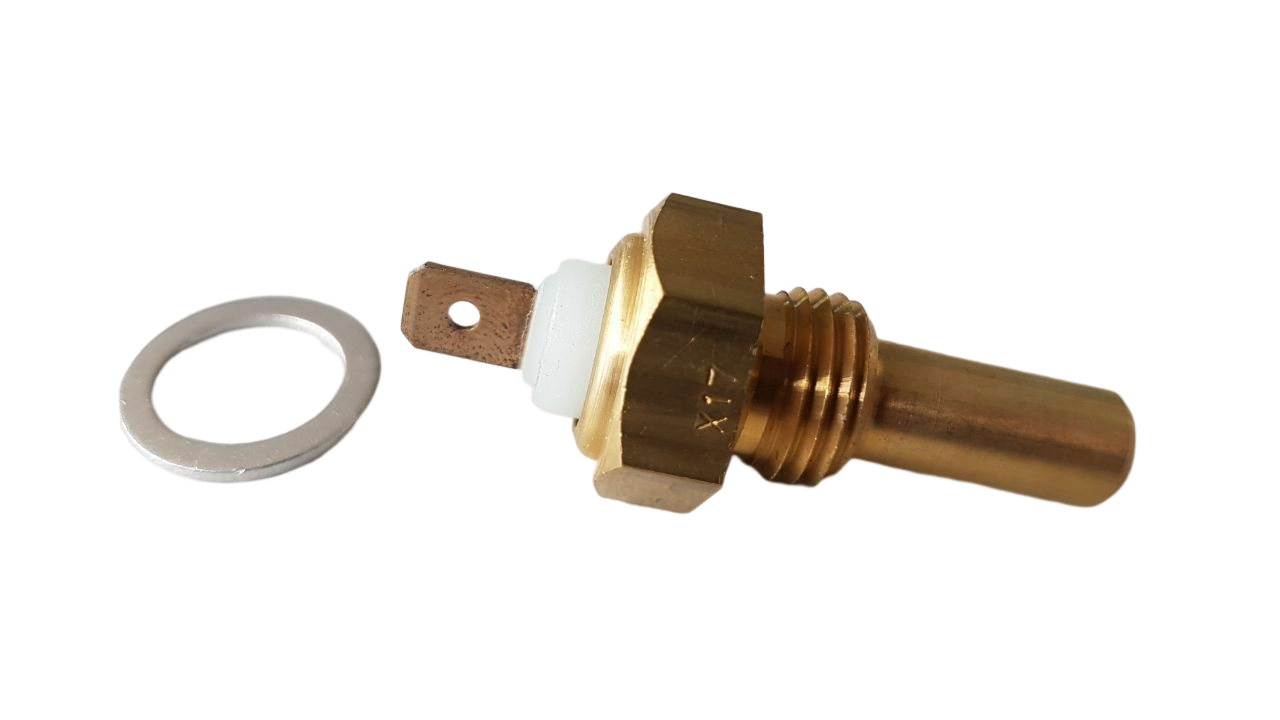

Coolant temperature sensor for BMW E21 315 - 323i Coolant temperature sensortransmits the coolant temperature to the instrument clusterthread size: M14 x 1,5for BMW E21 315 - 323iis needed 1x per vehicle

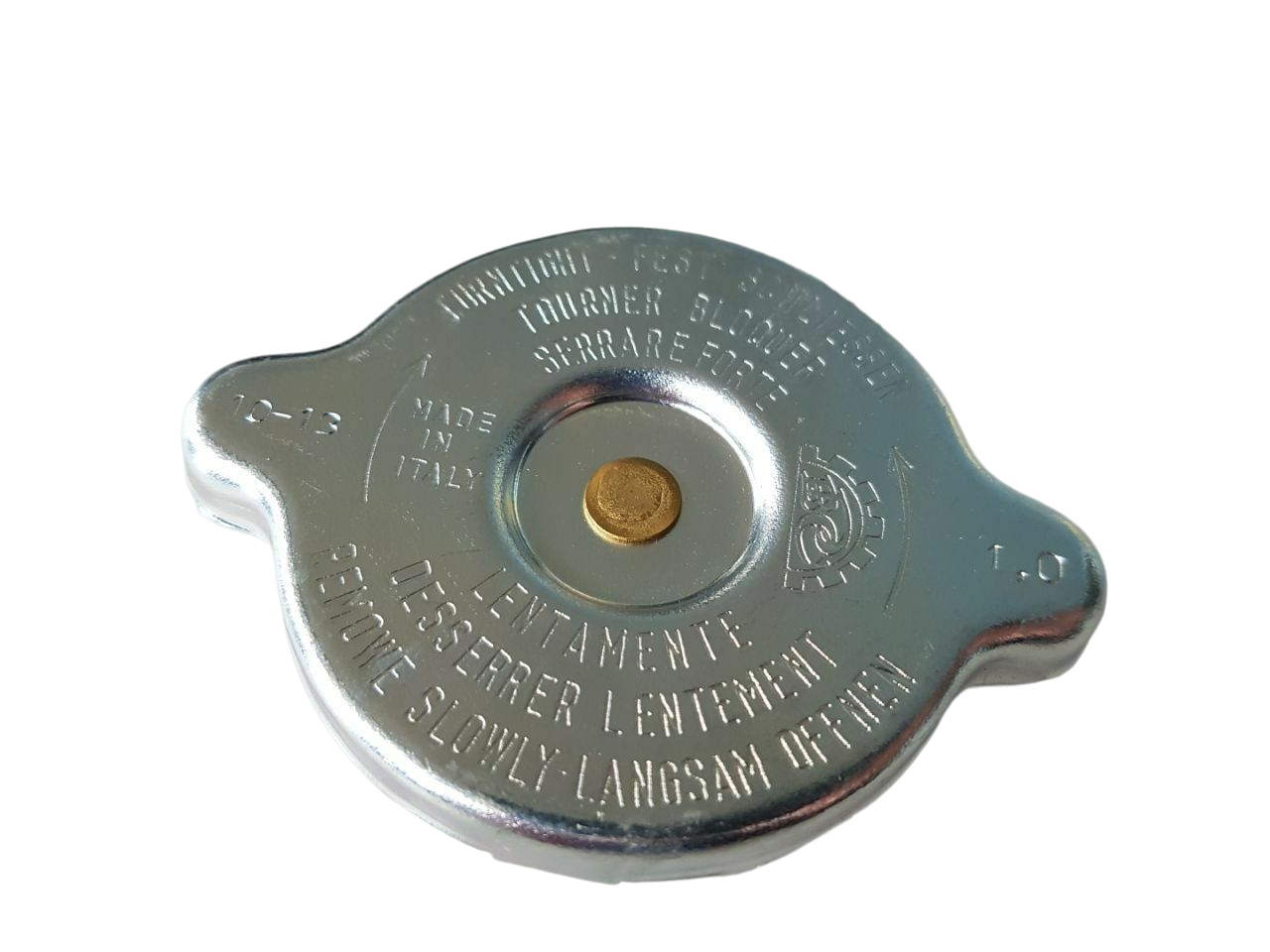

Cooler Lock for BMW E21 315 - 323i Cooler LockHeight: approx. 26 mmDiameter 1: approx. 58 mmDiameter 2: approx. 37 mmpressure: 1 bar / 15 psifor BMW E21 315 - 323iis needed 1x per vehicleDepending on availability the appearance may vary slightly!!!

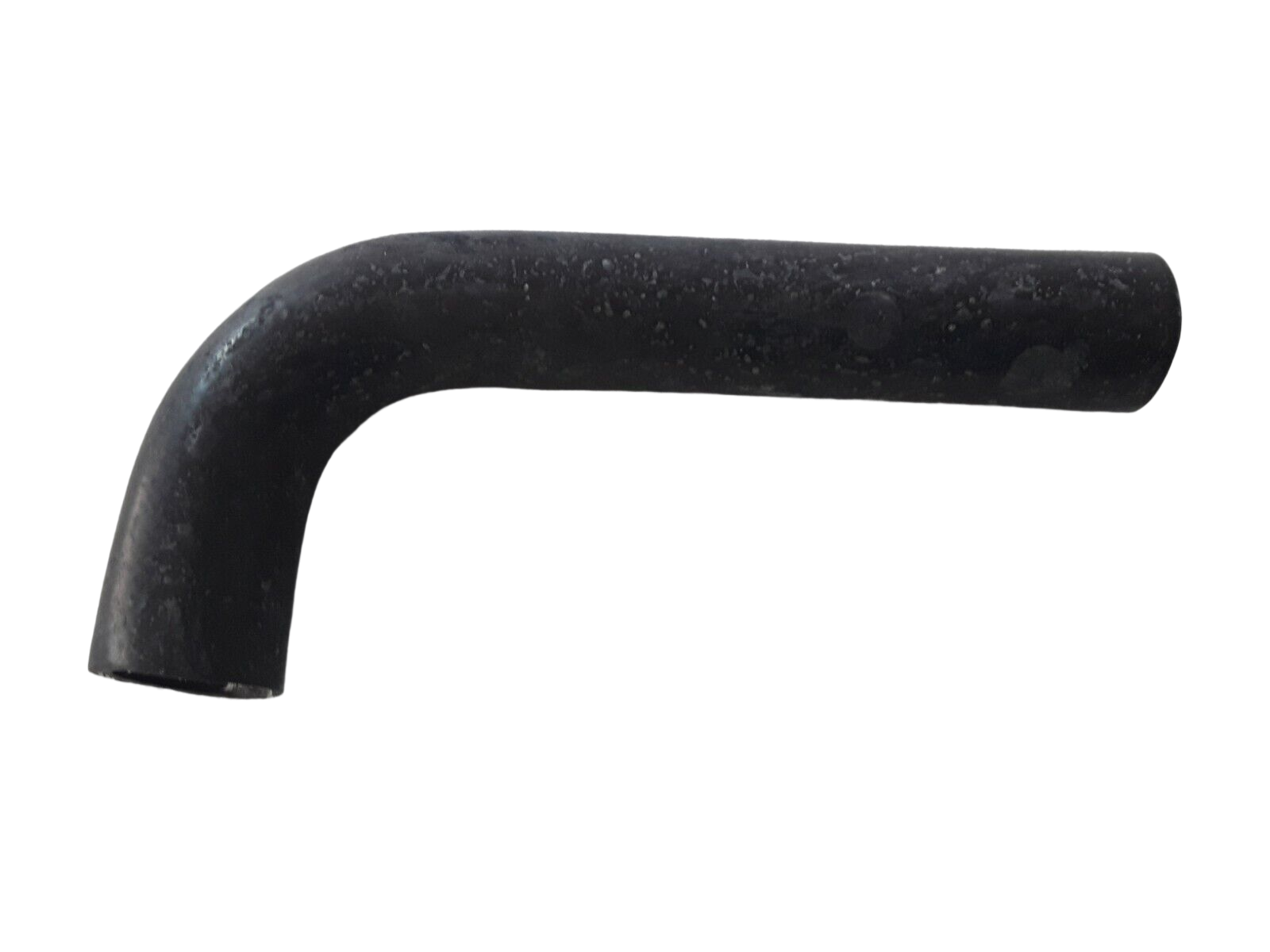

Cooling water hose from thermostat to flange for BMW E21 315 - 320i Cooling water hoseconnects thermostat and flangelength: 305 mmconnection diameter thermostat: 30 mmconnection diameter flange: 30 mmfor BMW E21 315 - 320iis needed 1x per vehicle

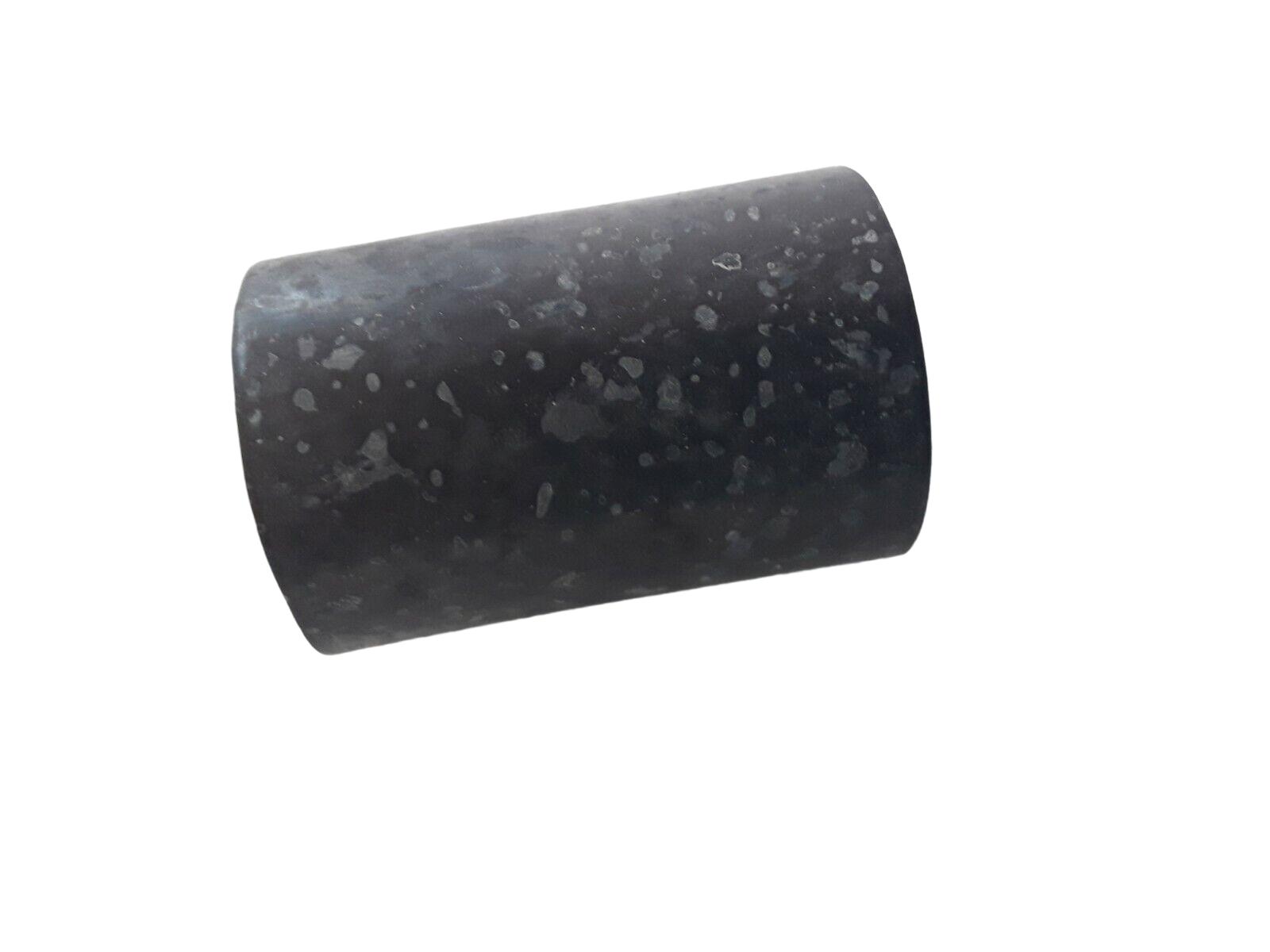

Cooling water hose between thermostat and water pump for BMW E21 315 - 323i Cooling water hoseconnects thermostat and water pumpfor BMW E21 315 - 323iis needed 1x per vehicle

Cylinder head gasket for BMW E21 315 and 316 until 09 / 1980 Cylinder head gasketThickness: 1,5 mmLength: 500 mmWidth: 155 mmDiameter: 86 mmfor BMW E21 315 and 316ONLY for vehicles up to year of manufacture 09 / 1980!!!is 1x per vehicle needed

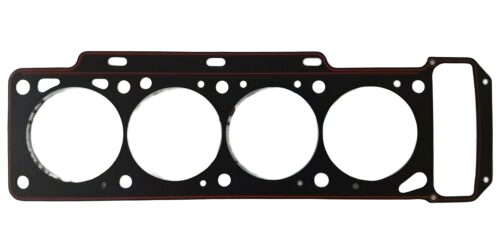

Cylinder head gasket for BMW E21 318i, 320/4 and 320i Cylinder head gasketThickness: 1,5 mmLength: 495 mmWidth: 155 mmdiameter: 90 mmfor BMW E21 318i, 320/4 and 320i is needed 1x per vehicle

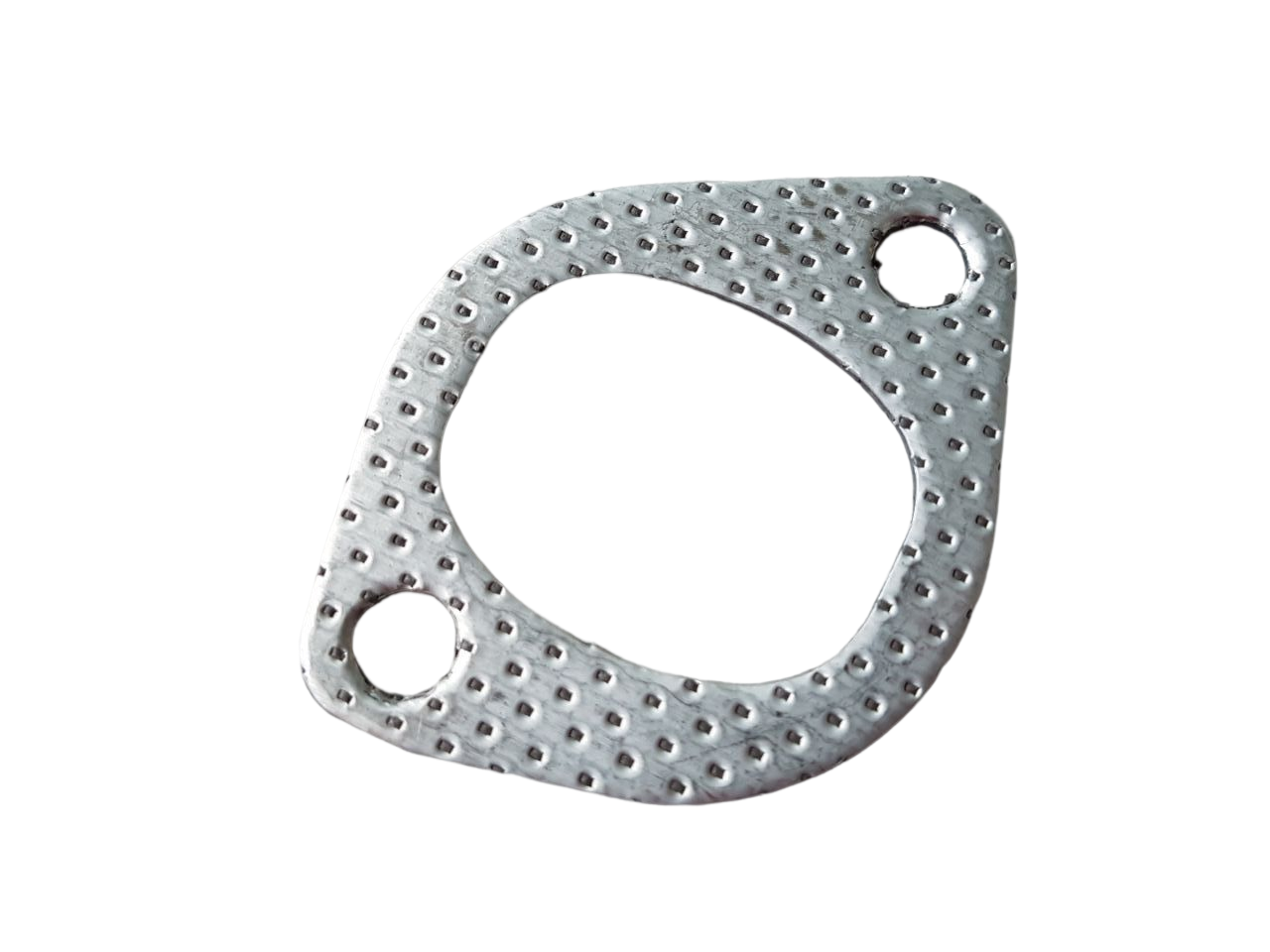

Gasket for exhaust manifold for BMW E21 318i, 320 and 320i Exhaust gasket / exhaust manifold gasketsits between exhaust manifold and cylinder headthickness: 8 mmlength: 80 mmwidth: 60 mmfor BMW E21 318i, 320 and 320iis needed 4x per vehicle

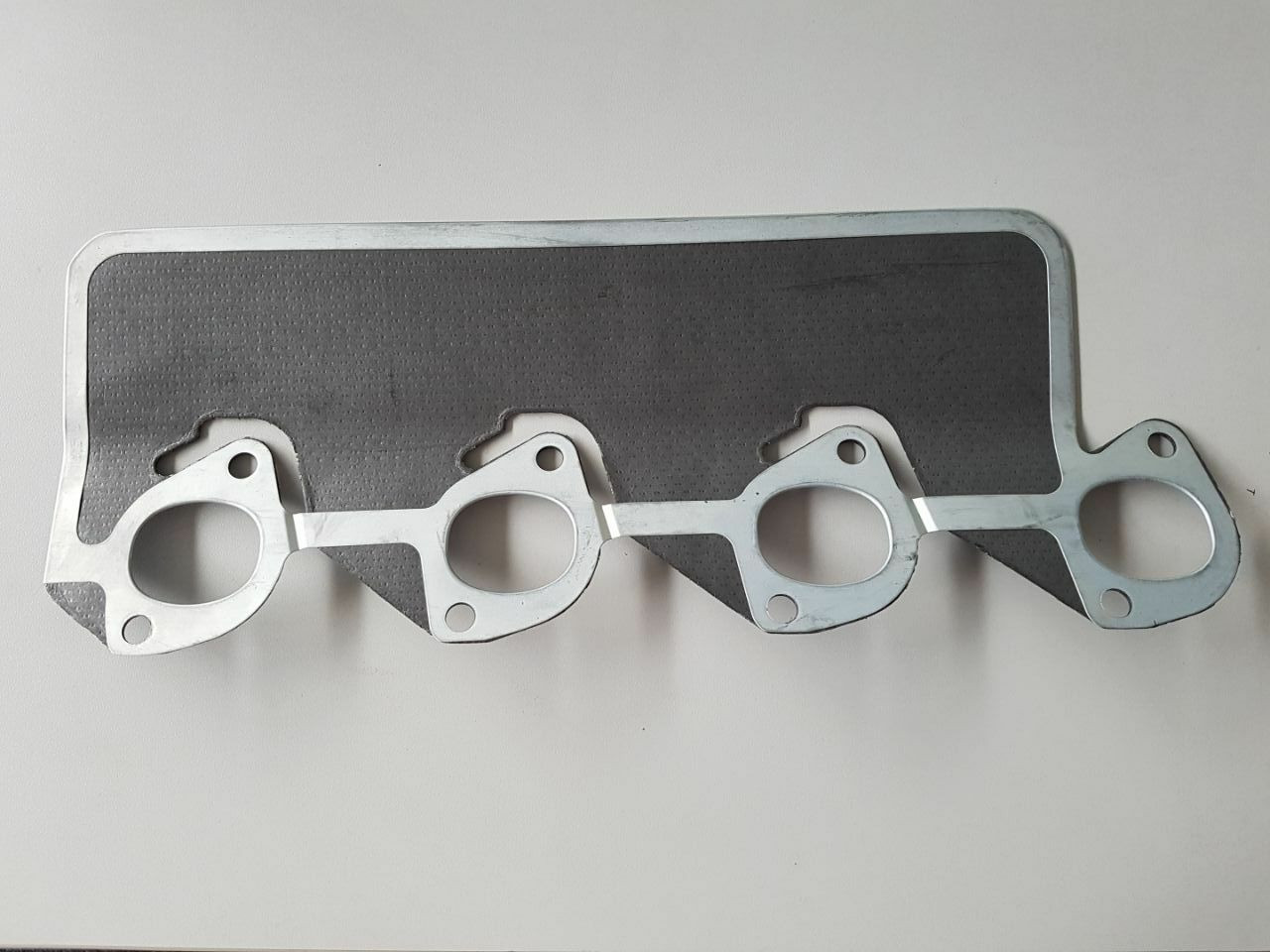

Exhaust gasket with heat shield BMW E21 318i - 320i Exhaust gasket with heat shield for BMW E21 318i - 320i ONLY for models with the M10 4-cylinder!!!  is needed 1x per vehicle

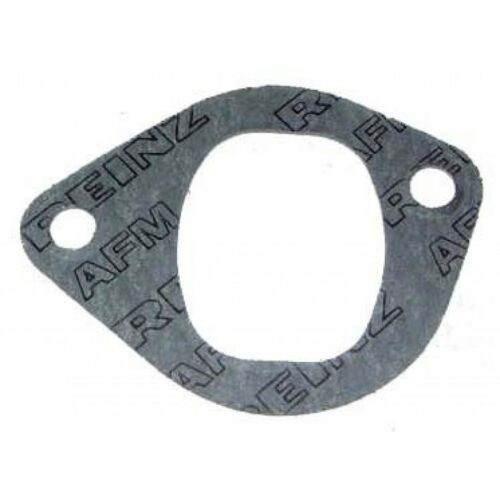

Gasket for intake manifold for BMW E21 318, 318i, 320/4 and 320i Intake gasket / seal for intake manifoldsits between cylinder head and intake manifoldthickness: 1,5 mmlength: 85 mmwidth: 65 mmfor BMW E21 318, 318i, 320/4 and 320iis needed 3x per vehicle

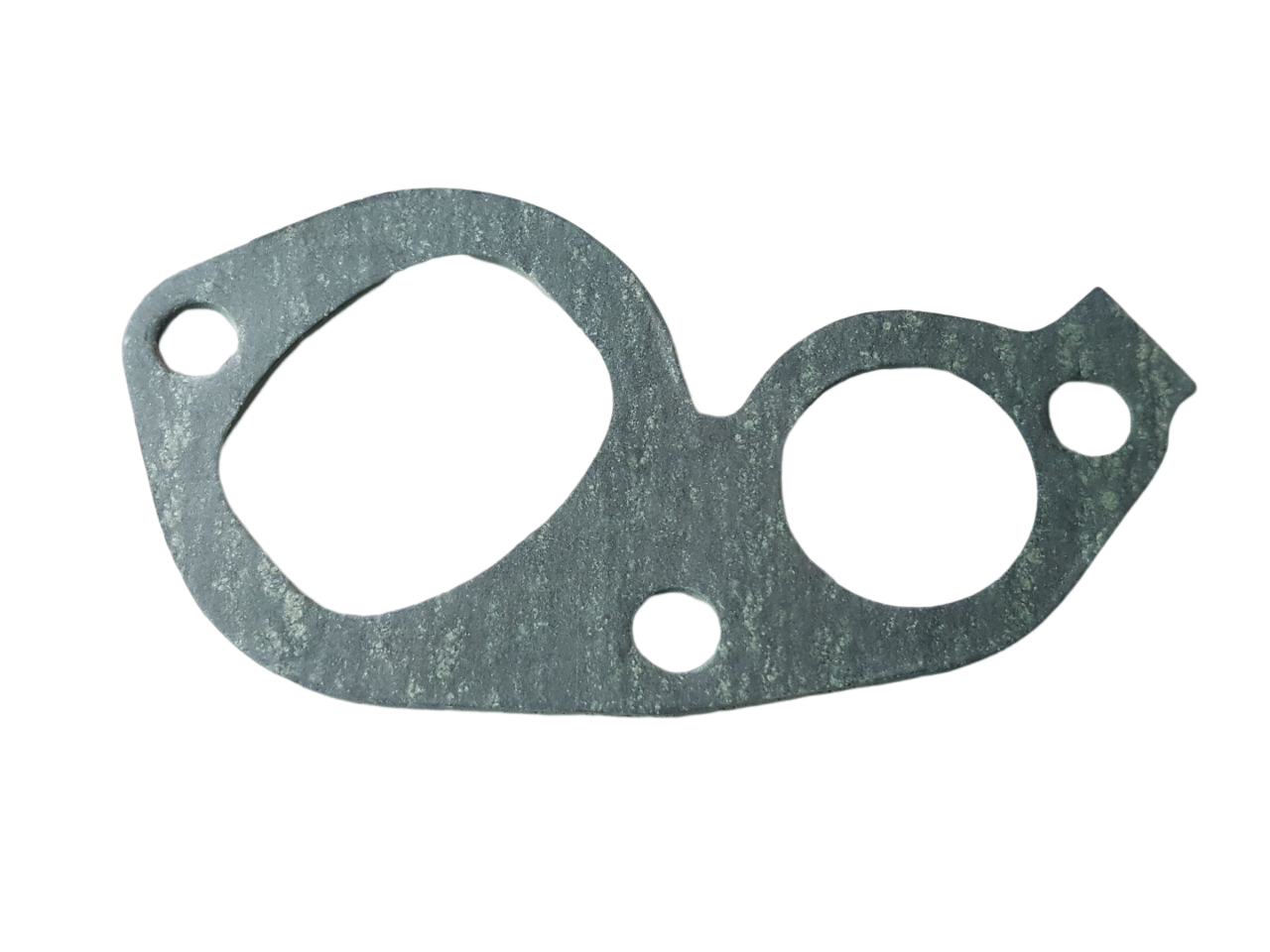

Gasket intake manifold for BMW E21 318, 318i, 320/4 and 320i Intake gasket / Intake manifold gasketsits between intake manifold and cylinder headThickness: 1,5 mmlength: 132 mmwidth: 65 mmfor BMW E21 318, 318i, 320/4 and 320iis needed 1x per vehicle

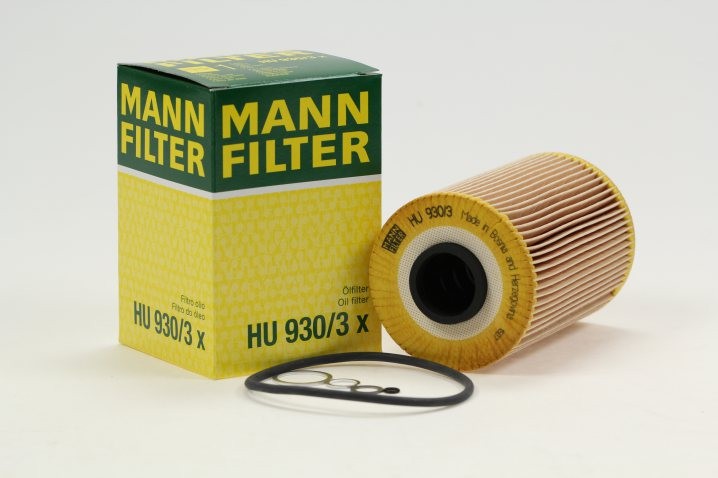

Oil filter from Mann-Filter for Alpina E21 B6 2.8 Oil filter  original Mann-Filter suitable for Alpina E21 B6 2.8 is needed 1x per vehicle suitable for the following OE numbers: 11421267268 11421269373 11421706867 11421718816 11429061199 11429063138 1269373 suitable for the following engine codes: M30 B28 (286EA2) M30 B28 (28EK0) height: 129 mm outer diameter: 81 mm inner diameter: 28 mm filter design: filter element with gasket

Oil filter from Knecht for Alpina E21 C1 2.3 Oil filter  original Knecht suitable for Alpina E21 C1 2.3 is needed 1x per vehicle suitable for the following OE numbers: 11421264508 11421266773 11421287836 11421707779 11421761087 11429061198 1264508 1266773 1707779 1761087 9061198 suitable for the following engine codes: C1 (M20 B23) Height: 120 mm Outer diameter: 76 mm sealing ring diameter: 62 mm thread dimension: 3/4" 16UNF-2B tightening torque: 20 Nm Filter design: spin-on filter with one return valve

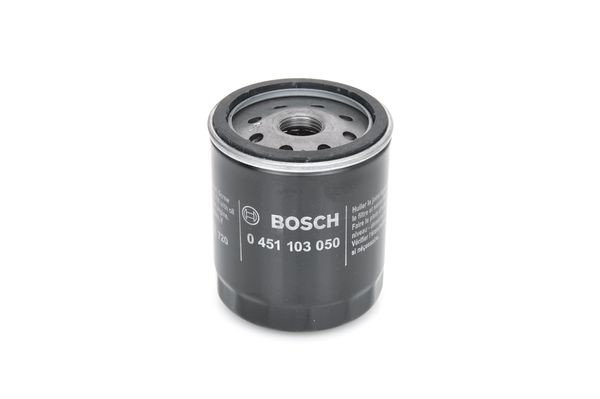

Oil filter from Bosch for BMW E21 315, 316, 318, 318i, 320, 320/6, 320i, 323i  Oil filter  original Bosch suitable for BMW E21 315, 316, 318, 318i, 320, 320/6, 320i, 323i  is needed 1x per vehicle suitable for the following OE numbers: 11421250534 11421258038 11421258039 11421267597 11421269485 11421272604 11421278059 11422901481 11423900086 11423900696 11429055001 11429061197 suitable for the following engine codes: M10 B16 (164VA) M10 B16 (164VB) M10 B18 (184VA) M10 B18 (184VC) M10 B20 M20 B20 (206VA) M20 B23 (236EA) Height: 89 mm Outer diameter: 76 mm Inner diameter: 71 mm Thread dimension: 3/4" 16 UNF Filter design: spin-on filter

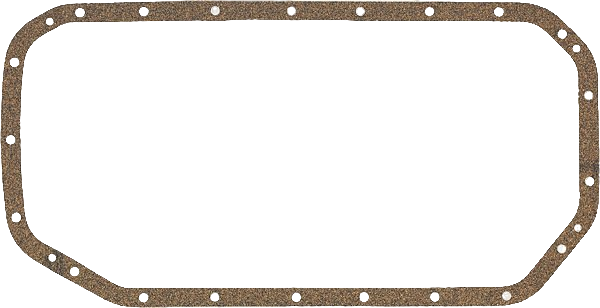

Oil pan gasket cork for BMW E21 315 - 320i Oil pan gasketmaterial: cork thickness: 1 mm width: 245 mmlength: 485 mmnumber of holes: 21for BMW E21 315 - 320iis needed 1x per vehicle

Oil pan gasket orig. paper gasket for BMW E21 315 - 320i Oil pan gasketoriginal paper versionwidth: 245 mmlength: 485 mmnumber of holes: 21for BMW E21 315 - 320iis needed 1x per vehicle

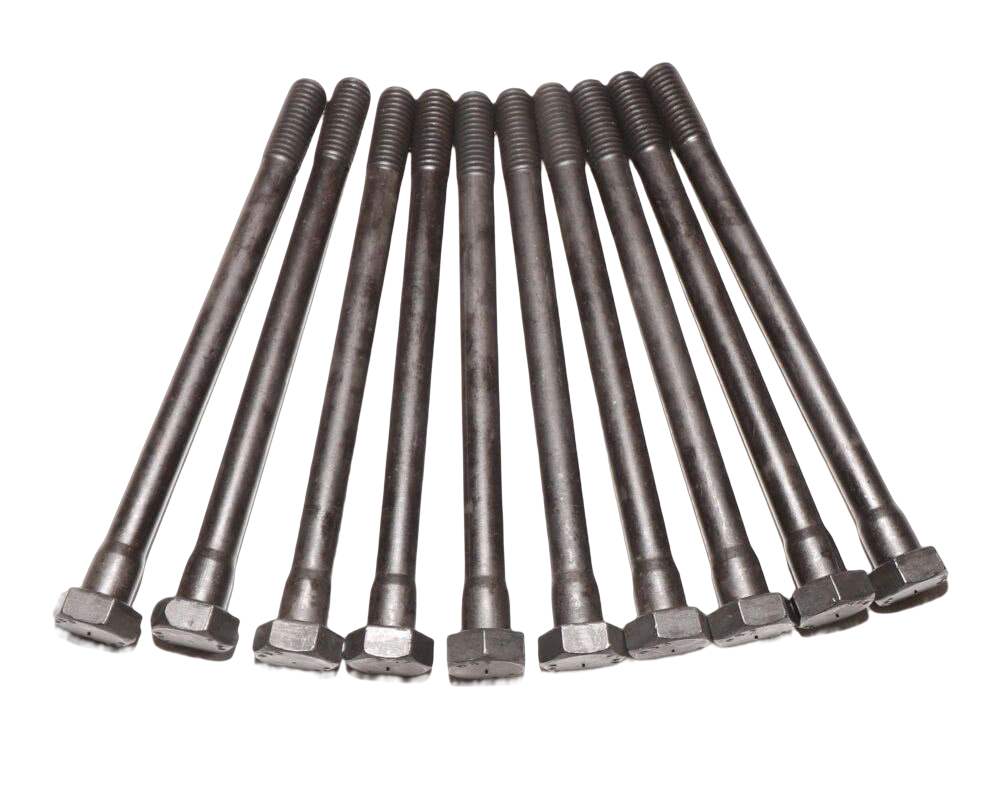

Set of cylinder head bolts for BMW E21 315 - 320i Set of cylinder head boltscontains 10 piecesThread: M12 x 1,75Bolt length: 157 mmTotal length: 164 mmwrench size: 19 mmScrew head profile: Hexagonal headGrade: 10.9for BMW E21 315 - 320iis needed 1x per vehicleThe installation should only be done by trained professionals!!!Depending on availability, the appearance may vary!!!

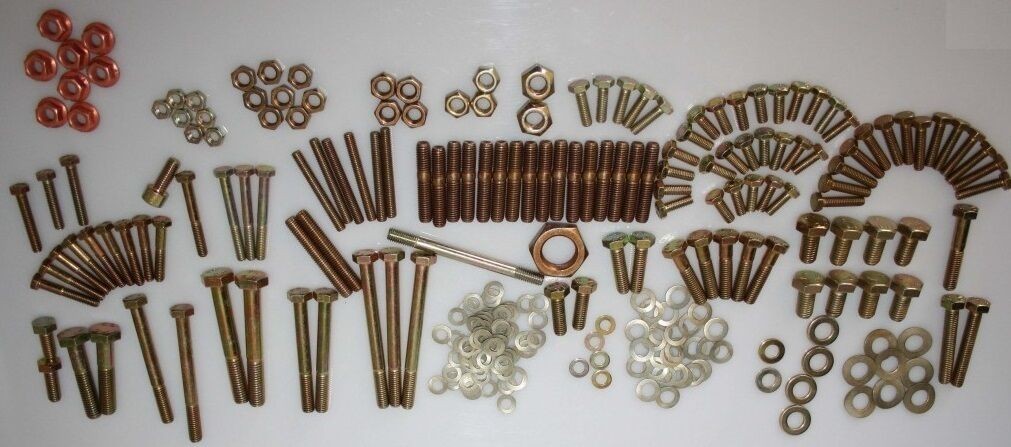

Set of mounting screws for engine for BMW E21 315 - 320/4 Mounting screws for engine installationcomplete set consisting of: Screws, nuts, bolts and washers265 piecesyellow chromatedfor BMW E21 315 - 320/4 ONLY suitable for carburetor models!!!is needed 1x per vehicle

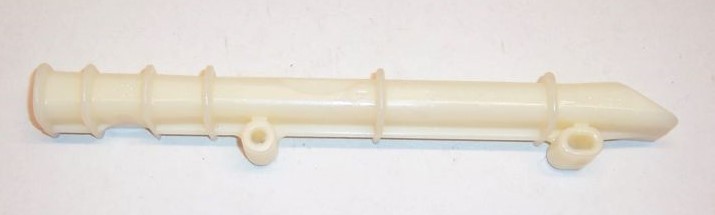

Slide bar for timing chain for BMW E21 315 - 320i Sliding bar for timing chainfor BMW E21 315 - 320i ONLY for cars with M10-engine!!! is needed 1x per vehicle

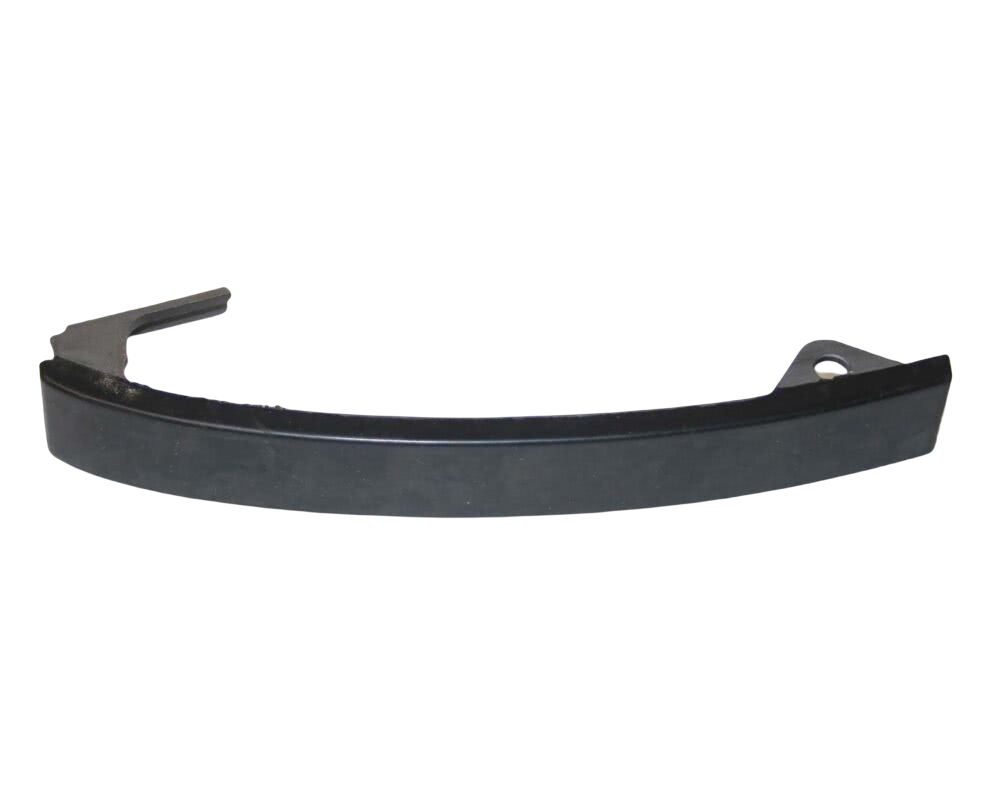

Tension bar for timing chain for BMW E21 315 - 320i M10 Tensioning bar for timing chainLength: 220 mmwidth: 28 mmfor BMW E21 315 - 320i ONLY for models with M10-engine!!!is needed 1x per vehicle
